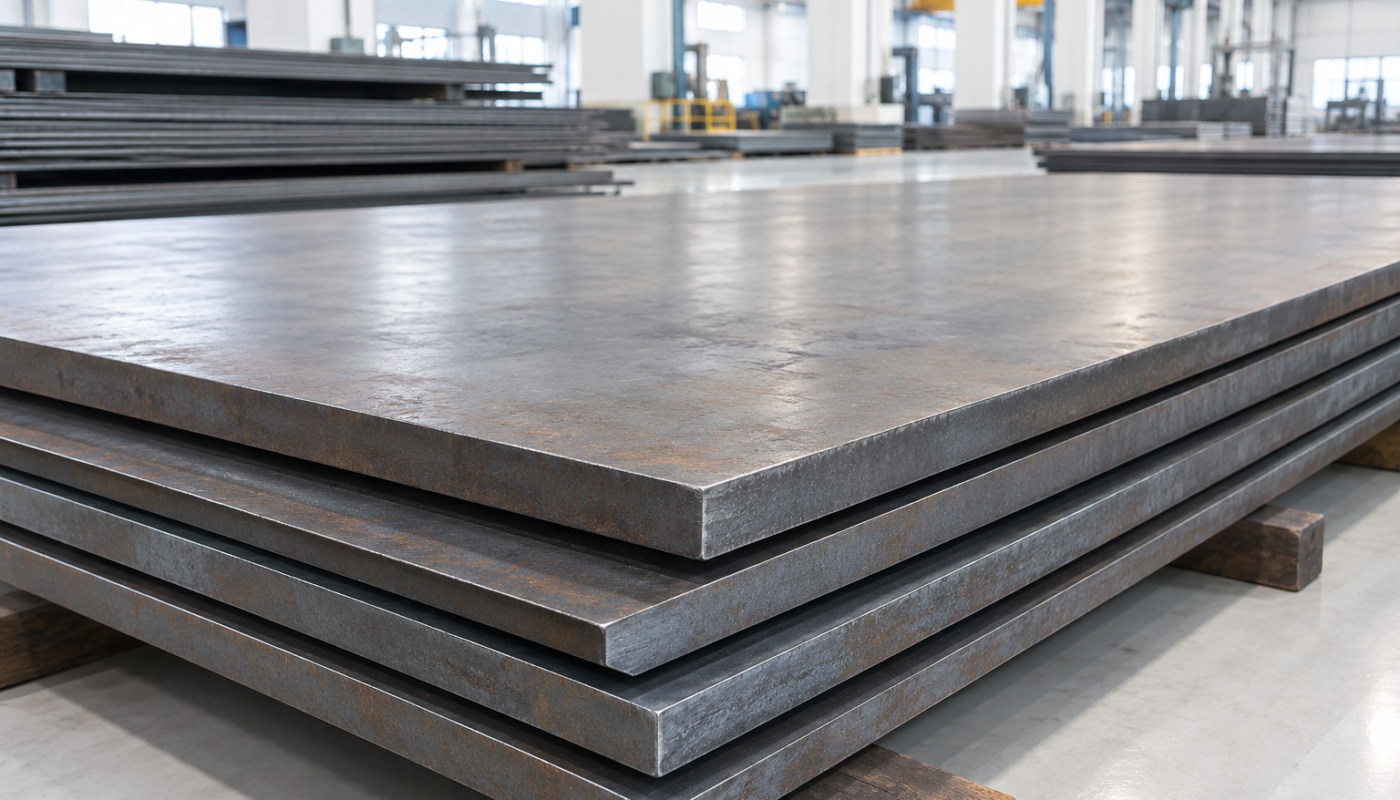

ASTM A516 Grade 60 / 70 Boiler Quality Steel Plates
ASTM A516 (ASME SA516) covers carbon steel plates intended primarily for service in welded pressure vessels and boilers where improved notch toughness is essential. Seamless Steel Industries stocks and distributes Grade 60 and Grade 70 plates in heavy thicknesses with comprehensive mill test certification.
Pressure Vessel Metallurgy & Low-Temperature Notch Toughness
Manufactured using fine austenitic grain practice and fully killed steel chemistry, ASTM A516 Grade 70 offers minimum tensile strength of 485 to 620 MPa with high resistance to brittle fracture. Plates are normalized to achieve verified Charpy V-notch impact absorption energy at sub-zero test temperatures down to -46°C (Grade 60) and -29°C (Grade 70).
Fabrication Suitability & Ultrasonic Verification
A516 plates provide superior formability for hot and cold dished head pressing, rolling of cylindrical vessel shells, and tube sheet machining in shell-and-tube heat exchangers. Internal soundness is verified through 100% ultrasonic examination conforming to ASME SA578 Level B or SA435 standards.
Quality Documentation & Logistics Staging
Supplied with full Mill Test Certificates conforming to EN 10204 3.1 with traceable heat and plate numbers hard-stamped. Sour gas service requirements (NACE MR0175 / ISO 15156 and HIC resistance) can be accommodated. Dispatched from our central logistics facility at Kalyan Phata, Mumbai–Thane.
Engineering Specifications & Technical Data
| Material & Standard Identification | |
|---|---|
| Material Classification | Boiler Quality Carbon-Manganese Steel |
| Material Grade(s) | Grade 70 / Grade 60 (Dual Certified) |
| Applicable Standard(s) | ASTM A516 / ASME SA516 / IS 2002 |
| Manufacturing Process / Form | Hot Rolled, Normalized, Fully Killed, Fine Grain |
| Dimensional & Pressure Classifications | |
| Size / Nominal Bore Range | Thickness: 6 mm to 150 mm; Widths: 1500 mm to 3000 mm |
| Schedule / Pressure Rating | Class 1 / Class 2 Normalized Plates |
| Quality Assurance, Testing & Dispatch Logistics | |
| Quality Certification | Authentic Mill Test Certificate (EN 10204 3.1 MTC) supplied with delivery; complete chemical heat analysis and mechanical property compliance verified |
| Testing & Inspection Readiness | Hydrostatic, Ultrasonic (UT), Eddy Current (ET), Hardness, and Tensile testing; third-party inspection facilitated (LRS, TUV, DNV, BV, SGS, EIL) |
| Origin & Dispatch Logistics | Central logistics hub at Mumbai–Thane; pan-India road and trailer freight with complete transit insurance |
Request Commercial Quotation for ASTM A516 Grade 60 / 70 Boiler Quality Steel Plates
Submit your required nominal bore, wall thickness / schedule, custom cut length, and delivery destination. Our commercial sales engineering desk responds with formal project pricing and delivery schedule.
Typical Industrial Applications
Quality Control & Inspection Assurance
All supplies are processed through rigorous quality protocol to verify dimensional conformity, metallurgical integrity, and full documentation traceability.
EN 10204 3.1 Mill Test Certificates
Authentic manufacturer test certificates verifying chemical heat composition, mechanical tensile/yield strength, and elongation accompany every consignment.
NABL Testing Laboratory Readiness
Supplementary testing facilitated through ISO/IEC 17025 (NABL) accredited laboratories including Hydrostatic, Ultrasonic (UT), Eddy Current (ET), and Hardness.
Third-Party Inspection (TPI)
Complete facility access and staging for independent inspection agencies: LRS, TUV, DNV, Bureau Veritas, SGS, Engineers India Limited (EIL), or client inspectors.
100% Heat Number Traceability
Permanent paint stenciling and low-stress hard stamping provide direct correlation between physical material and certified mill test records.
📄 Technical Documentation & Material Test Certificate Specimen
Request mill test certificate specimens, chemical analysis matrices, or dimensional tolerance sheets for ASTM A516 Grade 60 / 70 Boiler Quality Steel Plates.
